  • 产品信息:
    描述:industrial lcd 8 inch 1024*600 high resolution lcd display panel with full view angle 85/85/85/85
    模型:PS080IA-10A-1
    显示尺寸(英寸) :8
    解析度 :1024(RGB)*600
    有效面积(mm) :176.64*99.36
    外形尺寸(mm) :192.8*116.9*6.4
    亮度(cd / m2) :600
    对比度 :1000
    接口 :LVDS
    备注:40pins

    产品详情

    Industrial lcd 8 inch 1024*600 high resolution lcd display panel with full view angle 85/85/85/85


    · General information:

    Item Specification
    LCD size 8 inch(Diagonal)
    Driver element a-Si TFT active matrix
    Resolution 1024*3(RGB)*600
    Display mode Normally Black,Transmissive
    Dot pitch 0.1725(W)*0.1656(H)mm
    Active area 176.64(W)*99.36(H)mm
    Module size 192.8(W)*116.9(H)*6.4(D)mm
    Surface treatment Anti-Glare
    Color arrangement RGB-stripe
    Interface LVDS
    Backlight power consumption TBD(Max)
    Panel power consumption TBD(Typ.)
    Weight 225 g(Max)


    · Product Details

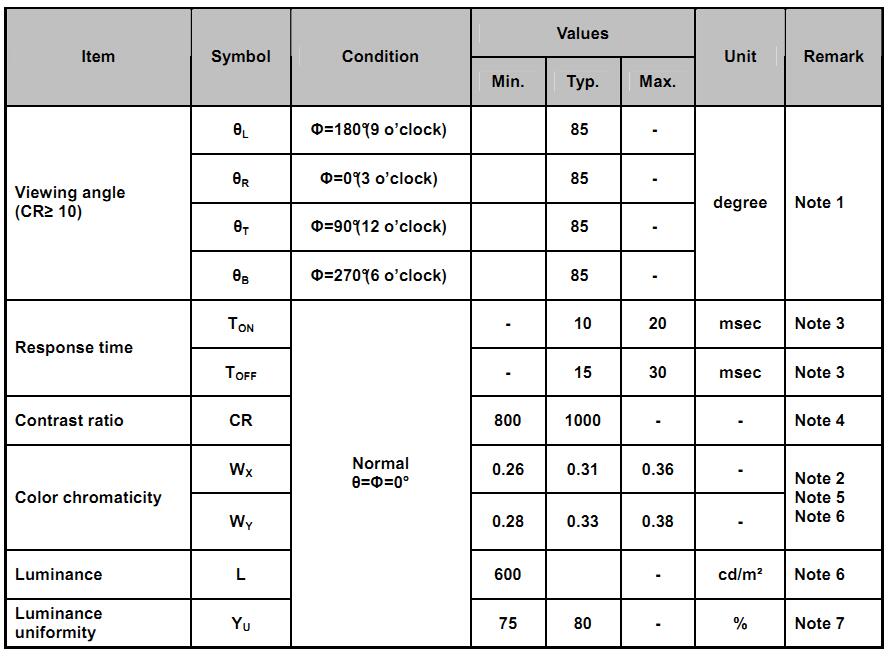

    · Optical Specifications:



    · Other inches Display recommendation:
