  • 产品信息:
    描述:8-Inch 1024 X 600p IPS TFT LCD Display with 600CD/M2; Brightness and Lvds Interface, Wide View Angle
    模型:PS080IA-10A-3
    显示尺寸(英寸) :8
    解析度 :1024(RGB)*600
    有效面积(mm) :176.64*99.36
    外形尺寸(mm) :192.8*116.9*6.4
    亮度(cd / m2) :600
    对比度 :1000
    接口 :LVDS
    备注:40pins

    产品详情

    8.0-inch 1280(RGB)*720P IPS TFT LCD display with 750 brightness and free viewing angle


    This display module is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit. The resolution of a 8.0” contains 1024(RGB)X600 dots and can display up to 16.7M colors.


    General Specification

    Item

    Contents

    Size

    8.0 inch

    Outline Size

    192.8*116.9*6.4 mm

    Active Area

    176.64*99.36 mm

    Resolution

    1024(RGB)*600 Pixels

    Viewing direction

    IPS, All

    Brightness

    600 cd/m2

    Contrast ratio

    1000:1

    Interface

    LVDS

    Operation temperature

    -20 to 70°C

    Storage temperature

    -30 to 80°C


    Application

    Mobile phones and PDAs/consumer electronics/automotive/telecoms and data transfer/medical instruments/security management/signs and display/point of sale, EPOS/energy controls/amusement and gambling machines/white goods

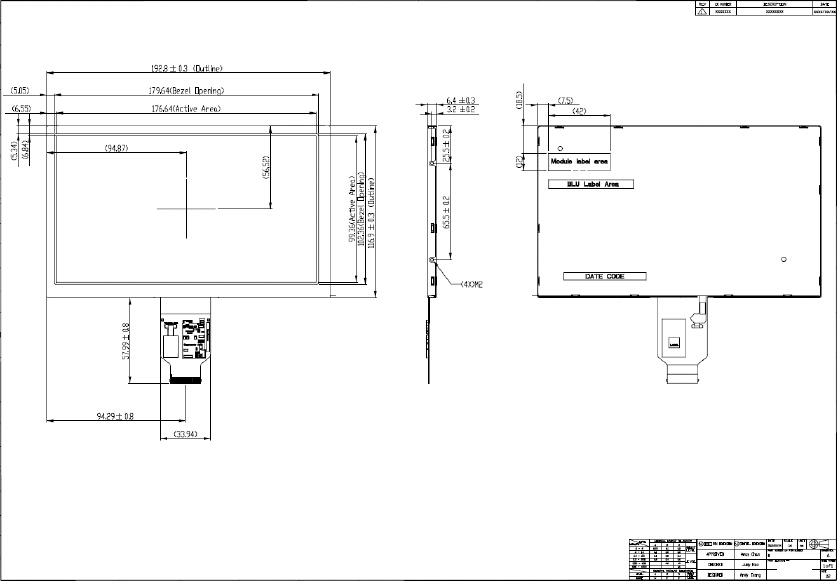

    Drawing
