  • 产品信息:
    描述:7-inch Resistive Touch Panel with 4 Wires, 1.4 mm Thickness, for HMI
    模型:PSR075002-01A-B
    显示尺寸(英寸) :7
    外形尺寸(mm) :165.04*104*1.45
    有效面积(mm) :152.4*91.4
    Pin NO. :4
    备注:

    产品详情

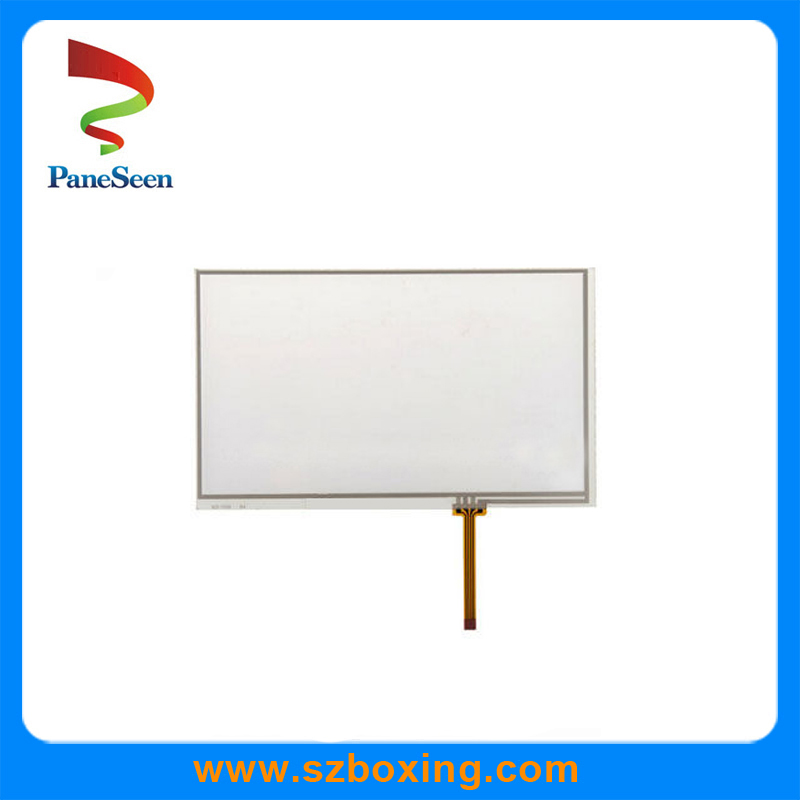

    7-inch Resistive Touch Panel with 4 Wires, 1.4 mm Thickness, for HMI





    Specifications:

    • Size: 7.0 inches
    • Wires: 4
    • Thickness/overall: 1.45mm
    • Connector: FPC
    • Outside area (L x W): 165.00 x 100.00mm
    • View area (L x W): 154.20 x 87.00mm
    • Active area (L x W): 154.20 x 87.00mm
    • Operating forces: 50 to 120g
    • Input method: finger or stylus
    • Surface hardness: 3H
    • ITO glass thickness: 0.7mm
    • Tail type: FPC
    • Tail length: 60.00mm
    • Transparency: 76%
    • Operating temperatures: -10 to 60°C
    • Storage temperatures: -20 to 70°C
    •
    • Common applications:
      • POS terminals
      • Financial-ATM and bill pay kiosks
      • Factory automation
      • Industrial controls
      • Medical equipment
      • Retail kiosks
      • Mobiles and pads
      • Automatic industry



    Drawing:


    Related products recommendation

    Model

    Display size
    (inch)

    Outline Size
    (mm)

    Active Area
    (mm)

    Pin NO.

    Remark

    PSR034002-01A

    3.4

    55.0*70.0*1.2

    46*60.0

    4



    PSR043005-01A

    4.3

    104.7*64.4*1.2

    94.74*53.86

    4



    PSR056001-01A

    5.6

    126.5*100*1.45

    110.9*82.7

    4



    PSR057012

    5.7

    104.7*132.5*1.4

    86.37*115.17

    4



    PSR070029-01A

    7

    165*100*1.4

    154.2*87

    4



    PSR075002-01A

    7

    165.04*104*1.45

    152.4*91.4

    4



    PSR080.E

    8

    182.5*140.4*1.4

    162.7*122.5

    4



    PSR0805430-04

    8

    192.2*115.1*1.45

    176.64*99.36

    4



    PSR084001-01A

    8.4

    189.35*149.0*1.4

    168.8*126.5

    4



    PSR090001-01A

    9

    210.2*126.3*1.45

    194.9*109.4

    4



    PSR101006-01

    10.1

    234.6*142*1.4

    222.72*125.28

    4



    PSR1012102

    10.1

    236.53*135.18*2.15

    222.76*125.22

    5



    PSR104001-01

    10.4

    223.1*172.5*1.8

    212.2*159.4

    4



    PSR15001-02

    15

    322*243.5*2.2

    306.5*230

    4



    PSR156TPM690

    15.6

    363.8*225.7*2.1

    344.23*193.54

    4



    PSR170A5B01

    17

    355*288*2.1

    337*269

    5
