  • 产品信息:
    描述:7'' TFT LCD screen with 1024*600 resolution and LVDS interface for security management
    模型:PS070NL0140NF-30A
    显示尺寸(英寸) :7
    解析度 :1024(RGB)*600
    有效面积(mm) :154.21*85.92
    外形尺寸(mm) :165.0*100*4.8
    亮度(cd / m2) :500
    对比度 :800
    接口 :LVDS
    备注:40 pins

    产品详情

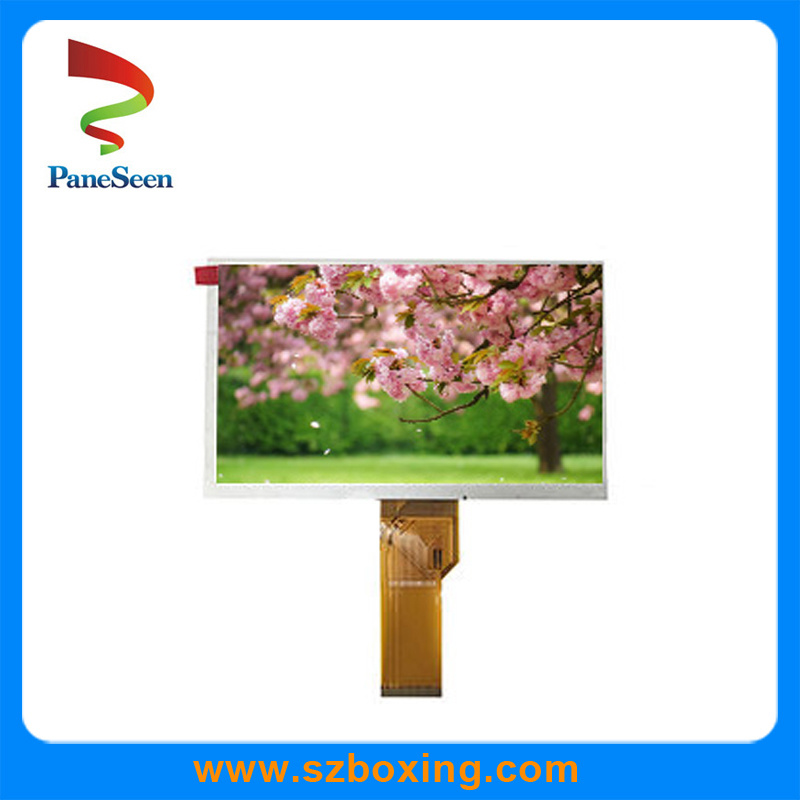

    7'' TFT LCD screen with 1024*600 resolution and LVDS interface for security management
    1.General Specification

    Item

    Contents

    LCD size

    7 inch (Diagonal)

    Driver element

    a-Si TFT active matrix

    Resolution

    1024 × 3(RGB) × 600

    Display mode

    Normally White, Transmissive

    Dot pitch

    0.1506(W) × 0.1432(H) mm

    Active area

    154.21*85.92 mm

    Module size

    165.0*100*4.8 mm

    Surface treatment

    Hard Coating

    Color arrangement

    RGB-stripe

    Interface

    LVDS

    View direction(Gray Inversion)

    6 O'Clock

    Backlight power consumption

    3.24 W  (Typ.)

    Panel power consumption

    0.34 W  (Typ.)

    Weight

    TBD


    2.Product Detail

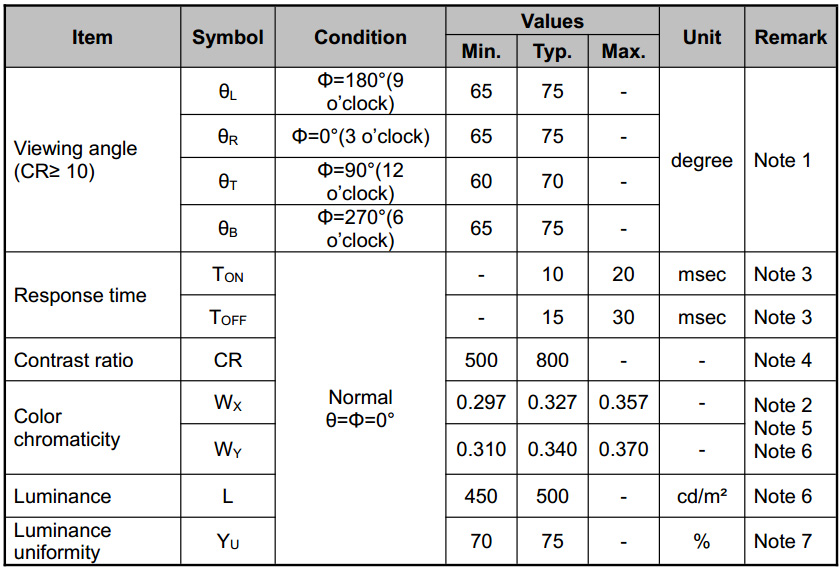

    3.Optical Specifications

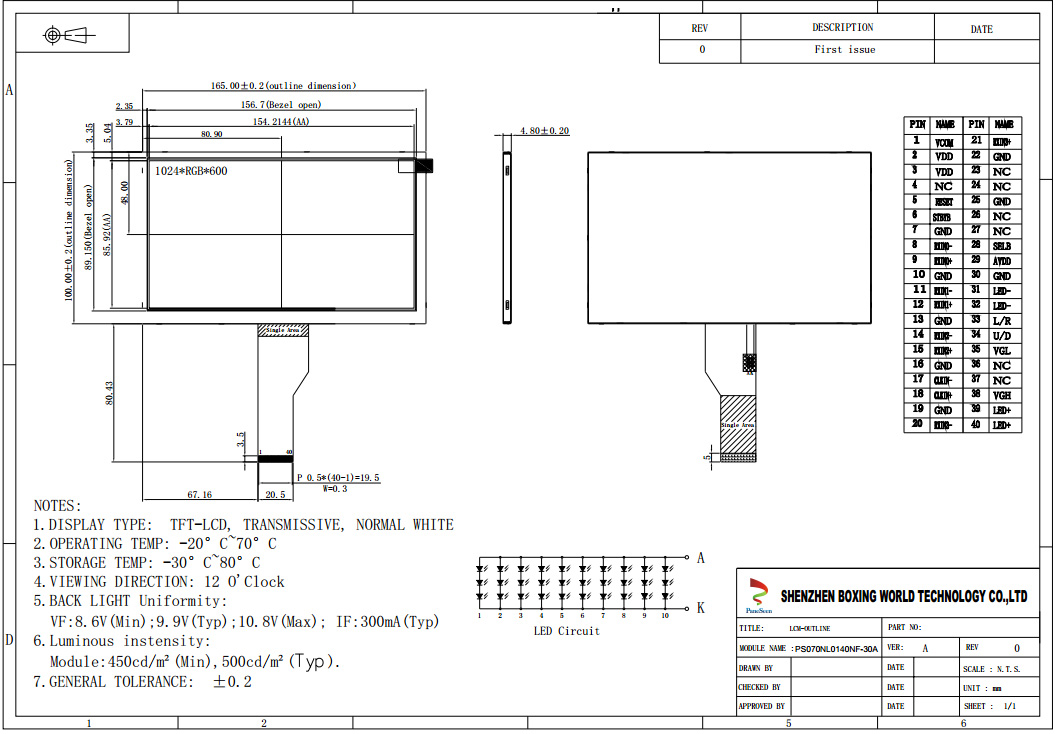

    4.Drawing picture


    5.Related products recommendation


    6. Our Factory


    7. Technological Process:



    8.Test instruments & Assembly

    9.Quality Control
    Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
    We will test goods strictly according to our standard inspection before shipment.
    If exceed this standard, clients can ask for returning and get new.


    10.Application:


    11.Company Advantages


    12. Packaging and Delivery
    1). Payment Terms: T/T, Paypal
    2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
    3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
    4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
    5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.


    13.Samples:
    Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

    14.Warranty
    The period is within 12 months since the date of shipping out under normal using  and storage conditions.

    15.Reference
    More Products Information also can be learned by entering our company website: http://www.szboxing.com/
