  • 产品信息:
    描述:6.8 inch 800*480 touch panel with RGB-24Bit interface TFT display LCD screen
    模型:PS068RDS02-01-1
    显示尺寸(英寸) :6.8
    解析度 :800(RGB)*480
    有效面积(mm) :151.8*79.68
    外形尺寸(mm) :163.00*91.00*4.9
    亮度(cd / m2) :400
    对比度 :500
    接口 :RGB
    备注:50pins

    产品详情

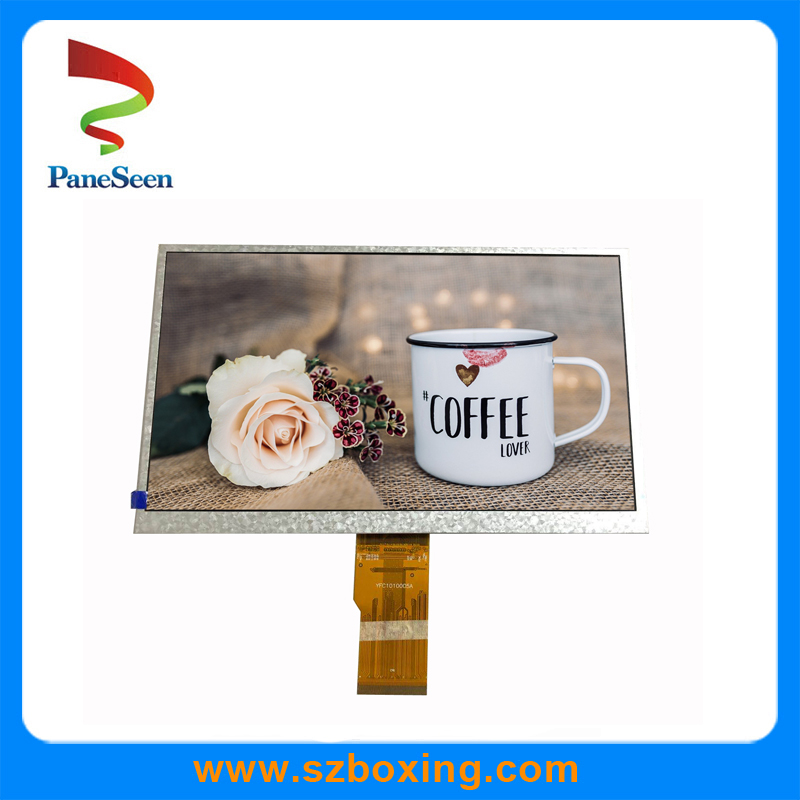

    6.8 inch 800*480 touch panel with RGB-24Bit interface TFT display LCD screen

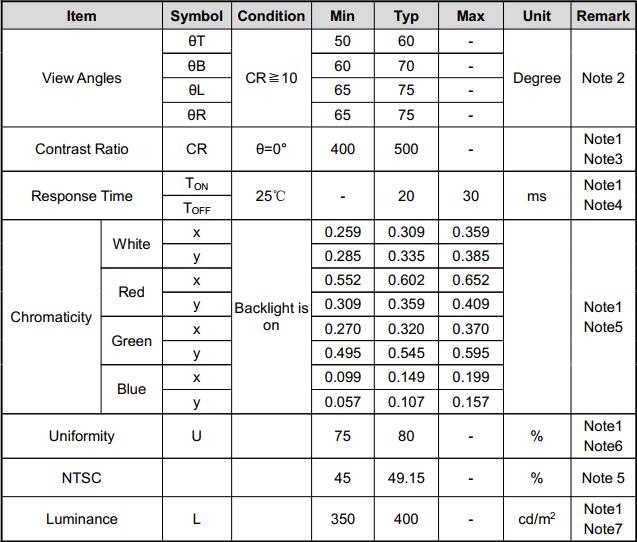

    General Specifications


    PS068RDS02-01 is a TFT-LCD module.It is composed of a TFT-LCD panel ,driver IC,FPC,a back light unit.The 6.8 " display area contains 800*480 pixels and can display up to 16.7M colors.This product accords with RoHs environmental criterion.



    LCD Type TFT/Transmissive
    Display Color 16.7M
    Viewing Direction 6 o'clock
    Gray scale inversion direction 12 o'clock
    Operating temperature -20-+70
    Storage temperature -30-+80
    Module Size 163.00*91.00*4.9
    Active Area(W*H) 151.8*79.68
    Number of Dots 800*480
    Controller ST7282
    Power Supply Voltage 2.8 V

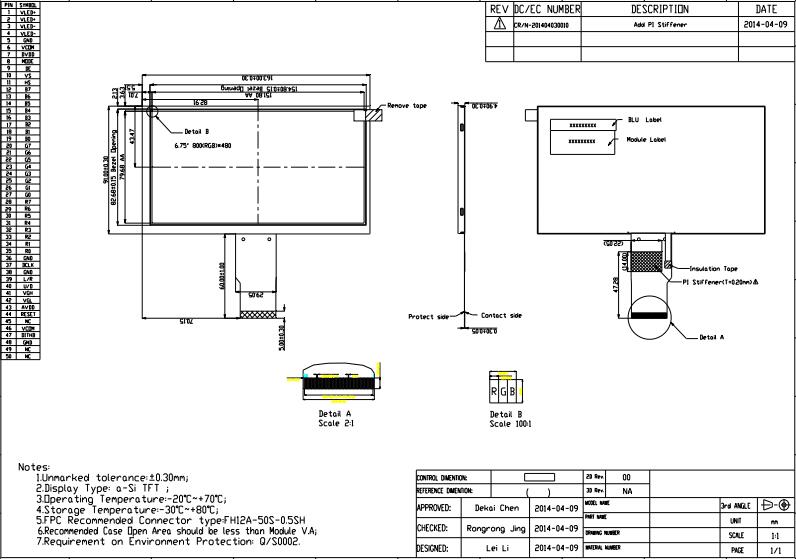

    Outline Dimensions Refer to outline drawing
    Backlight 10-LEDs(White)
    Pin 50
    Interface RGB888




    *Competitive price and short lead-time.


    *ISO9001 and ROSH certificated factory supplied.


    *TFT LCD module, touch panel, PCB with SMT/COB solutions





    Quality Control:


    Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!


    We will test goods strictly according to our standard inspection before shipment.

    If exceed this standard, clients can ask for returning and get new.




    Packaging and Delivery:


    1). Payment Terms: T/T, Paypal


    2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.


    3). Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.


    4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.


    5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.


    6). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.




    If you have any new inquiry,pls contact with us freely!
