  • 产品信息:
    描述:5'' TFT LCD touchscreen display with RGB interface/RTP/ 250 Brightness for GPS Navigation
    模型:PS050BPH01P-2
    显示尺寸(英寸) :5
    解析度 :480(RGB)*272
    有效面积(mm) :110.88*62.83
    外形尺寸(mm) :120.7*75.8*4.3
    亮度(cd / m2) :250
    对比度 :700
    接口 :RGB
    备注:With RTP

    产品详情

    5'' TFT LCD touchscreen display with RGB interface/RTP/ 250 Brightness for GPS Navigation
    1.Introduction
    PS050BPH01P is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 5.0'' display area contains 480 x 272pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

    2.General Specification

    Item

    Contents

    Unit

    LCD Type

    TFT

    -

    Display color

    16.7M

    -

    Viewing Direction

    12

    O'clock

    Gray scale inversion

    direction

    6

    O'clock

    Operating temperature

    -20~+70

    ºC

    Storage temperature

    -30~+80

    ºC

    Module size

    Refer to outline drawing

    mm

    Active Area(W×H)

    110.88*62.83

    mm

    Number of Dots

    480(RGB)*272

    dots

    Controller

    HX8257

    -

    Power Supply Voltage

    3.3

    v

    Outline Dimensions

    Refer to outline

    drawing

    -

    Backlight

    6*2-LEDs (white)

    PCS

    Weight

    ---

    g

    Interface

    RGB888

    -

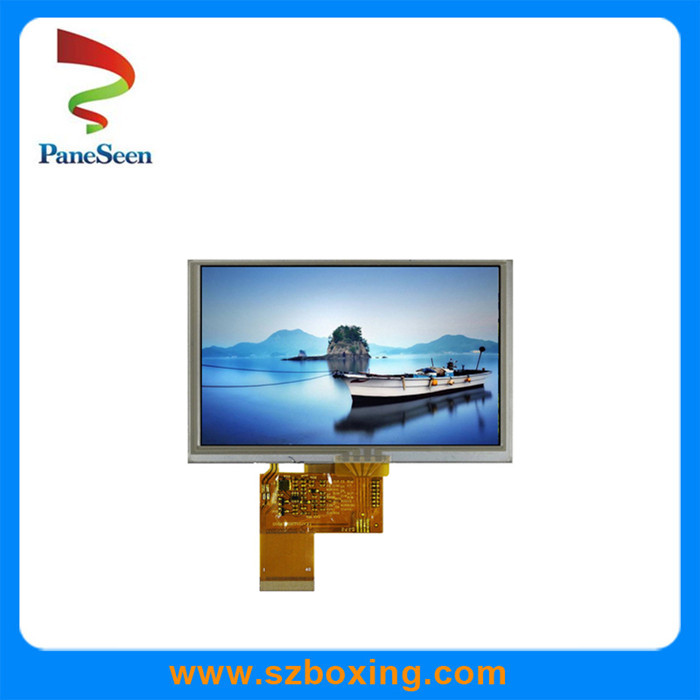

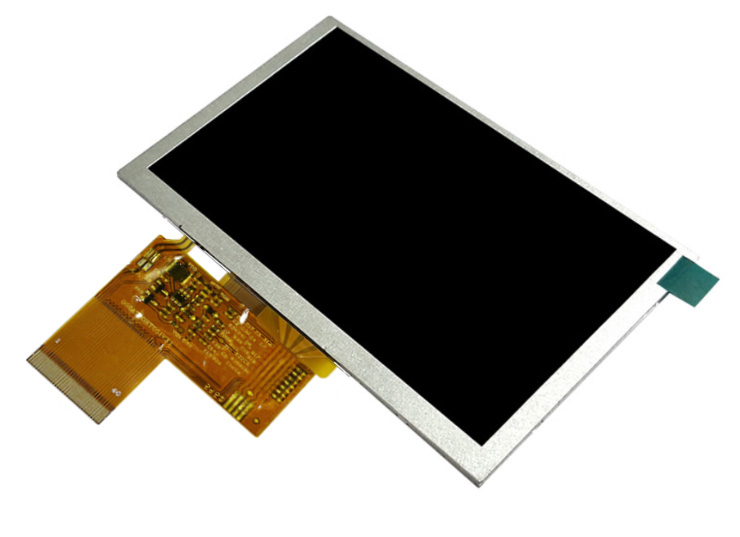

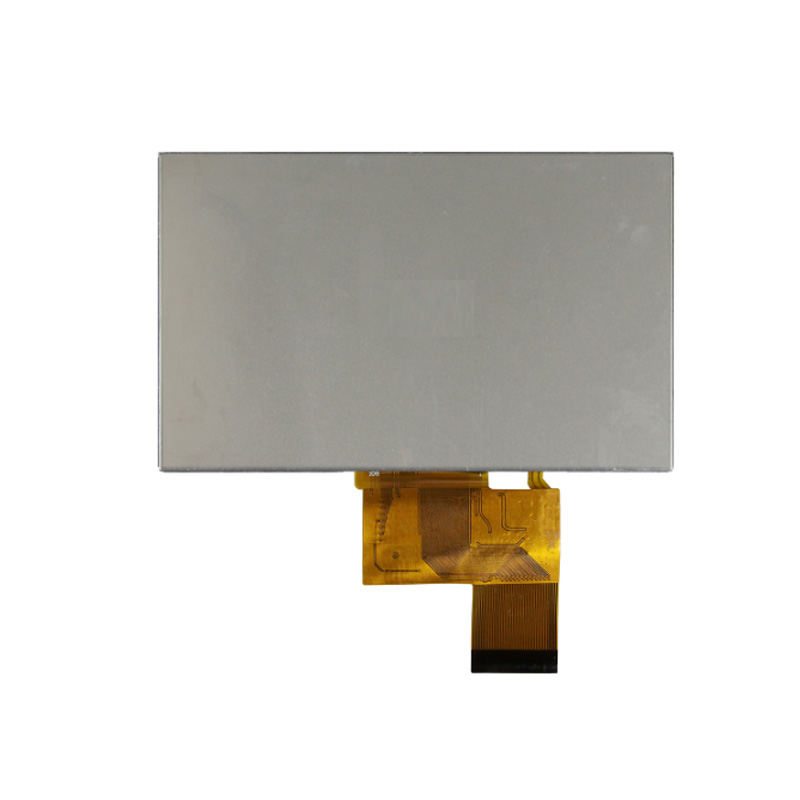

    3.Product Detail

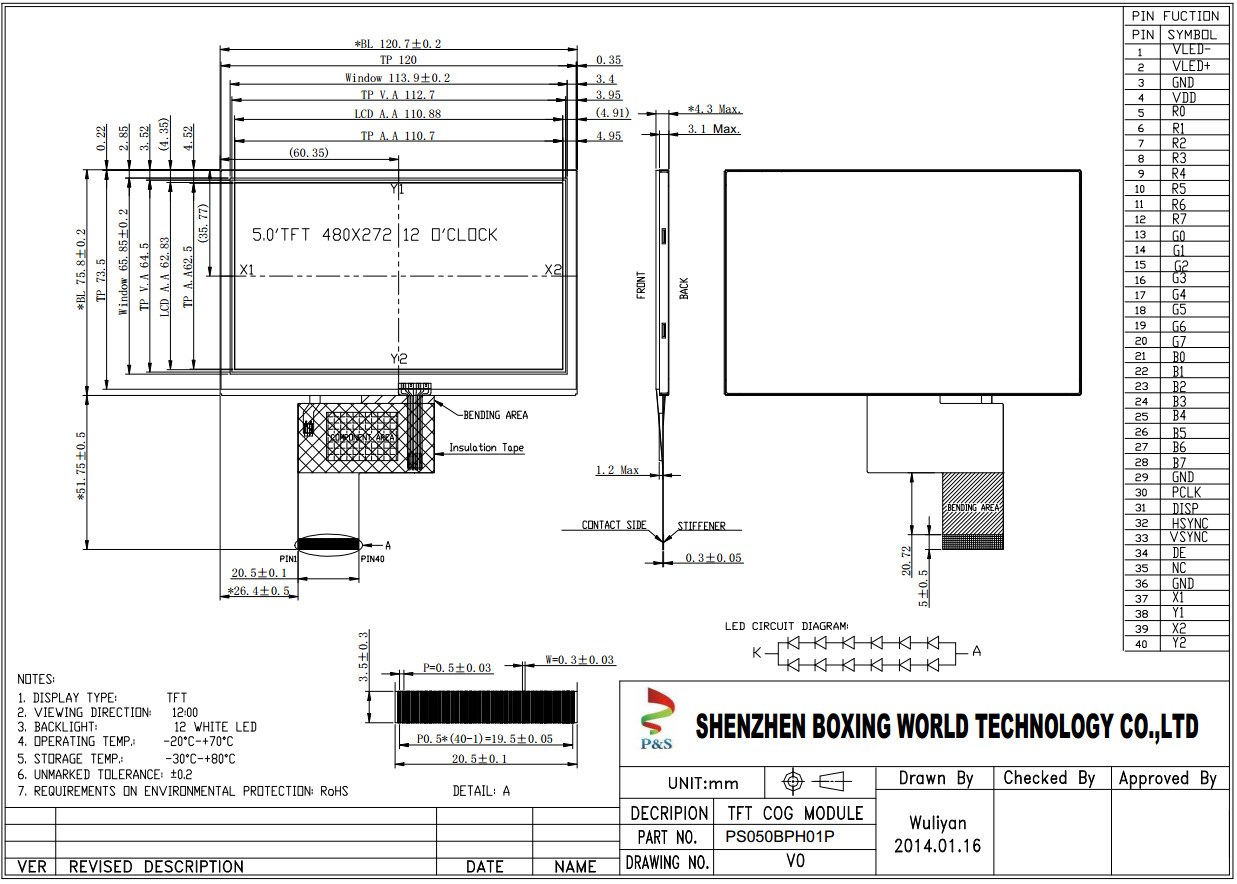

    4.Drawing picture

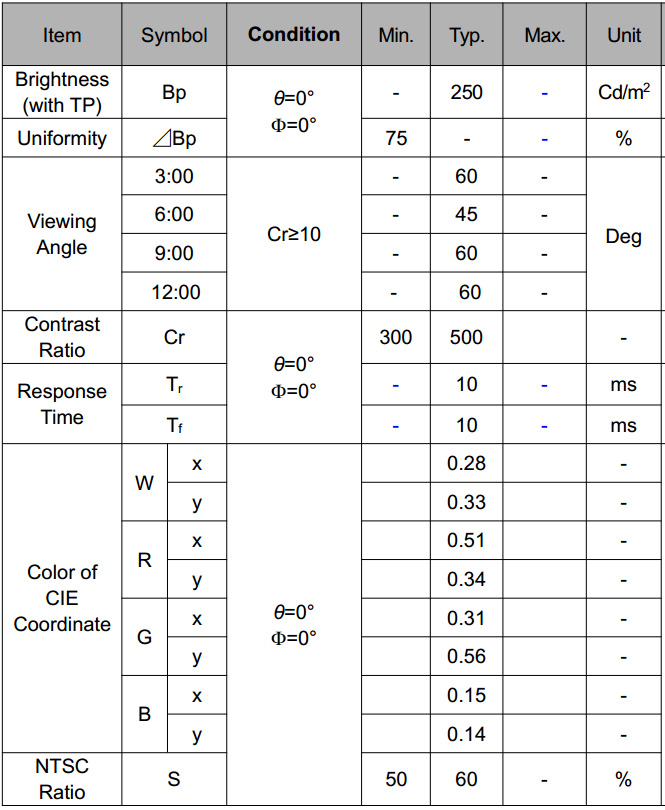

    5.Optical specification

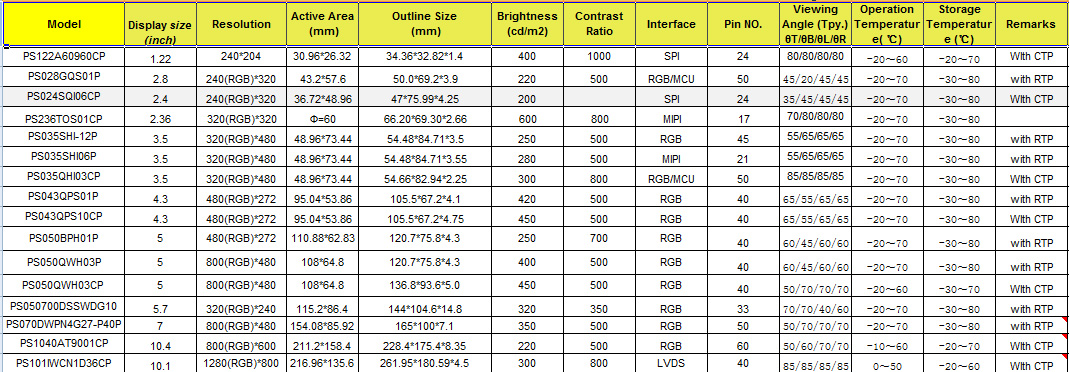

    6.Related products recommendation:

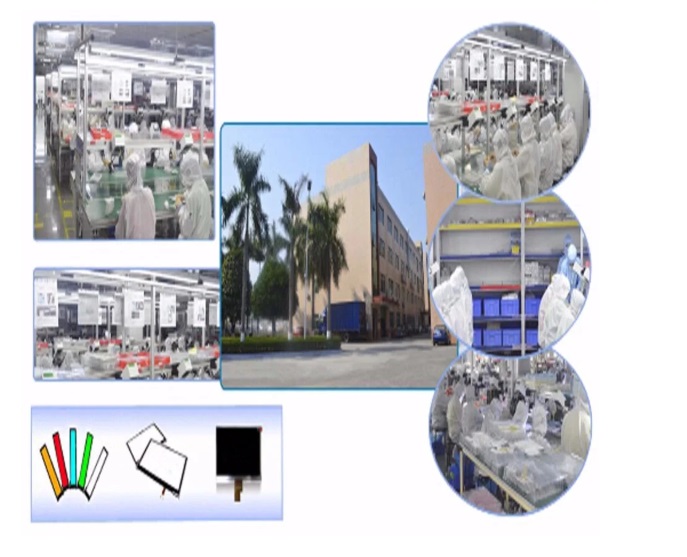

    7.Our Factory

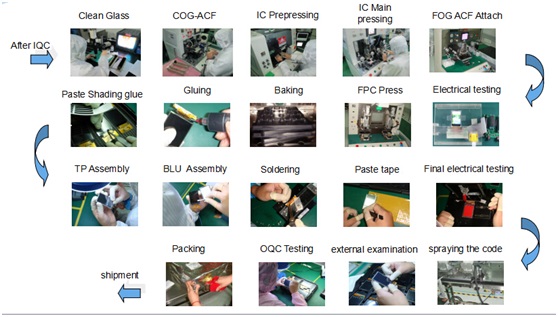

    8.Technological Process:

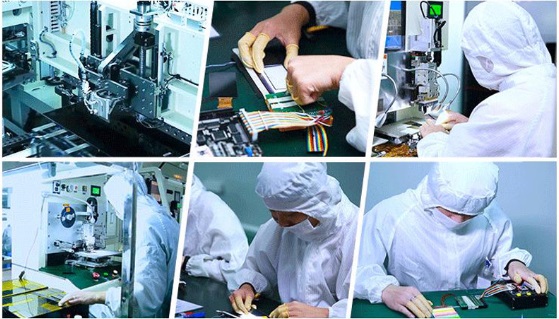

    9.Quality Control
    Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
    We will test goods strictly according to our standard inspection before shipment.
    If exceed this standard, clients can ask for returning and get new.


    10.Company Advantages
    * Prompt reply within 12 hours
    * Customer customization accepted
    * Competitive prices and short lead-time
    * Small minimum order quantity accepted
    * TFT LCD module, touch panel, PCB with SMT/COB solutions
    * More than 10 years experience in specializing in LCD industry
    * ISO 9001 and RoHS Directive-compliant certified factory supplied

    11. Packaging and Delivery
    1). Payment Terms: T/T, Paypal
    2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
    3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
    4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation

    5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.



    12.Samples:
    Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

    13.Warranty
    The period is within 12 months since the date of shipping out under normal using  and storage conditions.

    14.Reference
    More Products Information also can be learned by entering our company website: http://www.szboxing.com/

    If you are interested in it, please feel free to contact us!
