  • 产品信息:

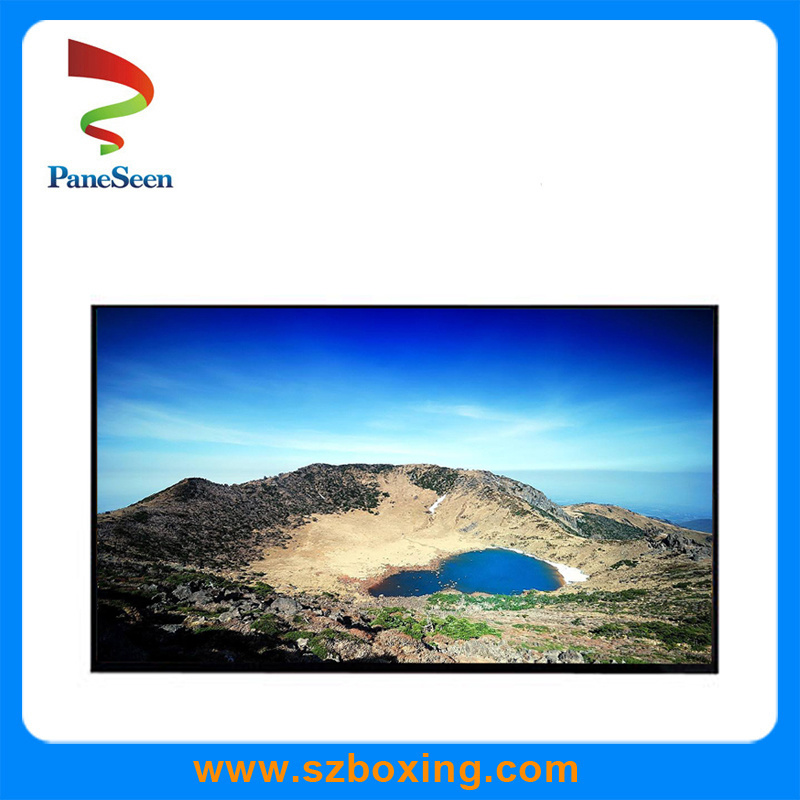

    描述:55-inch TV LCD Display with 1920(RGB) x 1080 Resolution and 350cd/M2 Brightness, LVDS interface
    模型:PS550LH6E1
    显示尺寸(英寸) :55
    解析度 :1920(RGB)*1080
    有效面积(mm) :1209.6 * 680.4
    外形尺寸(mm) :1234.4*708.1*26.5
    亮度(cd / m2) :350
    对比度 :4000
    接口 :LVDS
    备注:

    产品详情

    55-inch TV LCD Display with 1920(RGB) x 1080 Resolution and 350cd/M2 Brightness, LVDS interface


    1.General specifications

    --Super Wide viewing angle

    --Super High contrast ratio

    --Super Fast response time

    --High color saturation

    --DE(Data Enable ) only mode

    --LVDS Interface

    --RoHS compliance


    Item

    Contents

    Size

    55inch

    OD Size

    1234.4*708.1*26.5 mm

    Active area

    1209.6 * 680.4 mm

    Resolution

    1920*1080

    Brightness

    350cd/m² (typ)

    Contrast ratio

    4000:1 (typ)

    Interface

    LVDS

    Viewing angle (θT/θB/θL/θR)

    89/89/89/89 degrees

    Operation temperature

    0 to 50°C

    Storage temperature

    -20 to 60°C

    Display mode

    Normally black

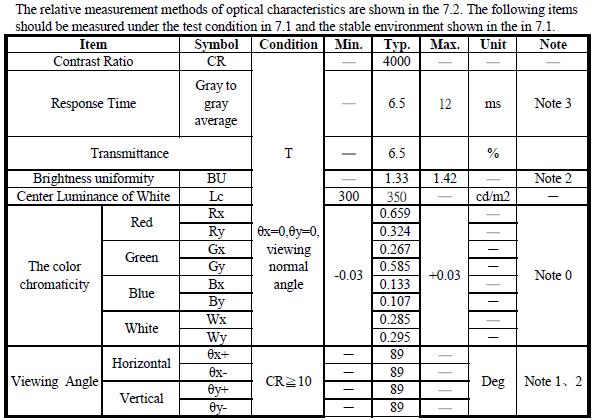

    2.Optical Specifications

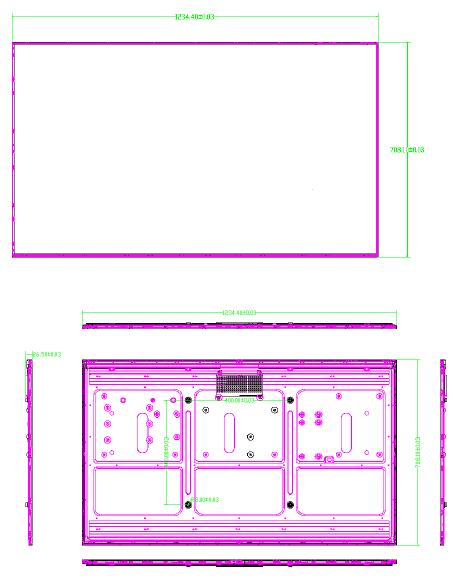

    3.Drawing
