  • 产品信息:
    描述:3.97-inch IPS LCD Screen with 480(RGB) x 800 and Wide Viewing Angle , RGB interface
    模型:PS397TVI05-3
    显示尺寸(英寸) :3.97
    解析度 :480(RGB)*800
    有效面积(mm) :51.84*86.4
    外形尺寸(mm) :57.14*96.85*2.25
    亮度(cd / m2) :300
    对比度 :700
    接口 :RGB
    备注:

    产品详情

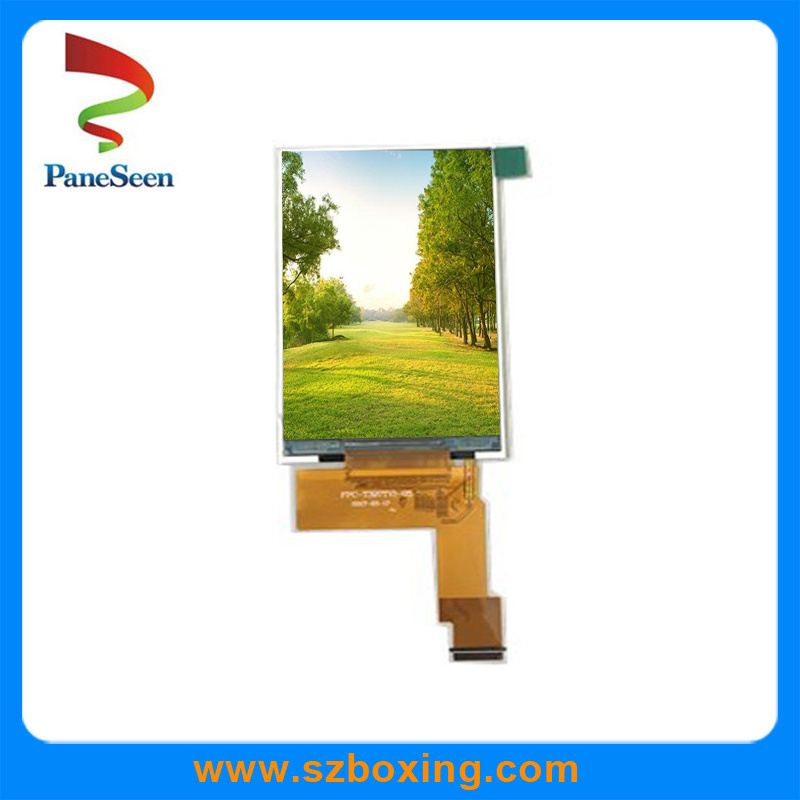

    3.97-inch IPS LCD Screen with 480(RGB) x 800 and Wide Viewing Angle , RGB interface


    PS397TVI05 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 3.97 display area contains 480 x800pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.

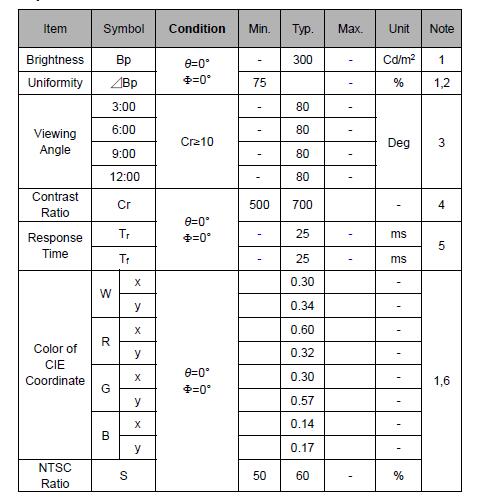

    General Specification

    Item

    Contents

    PN

    PS397TVI05

    Size

    3.97"

    Outline Size

    57.14*96.85*2.25

    Active Area

    51.84*86.4

    Resolution

    480(RGB)*800

    Viewing direction

    IPS, all

    Brightness

    300

    Contrast ratio

    700

    Interface

    RGB

    Operation temperature

    -1060°C

    Storage temperature

    -20 to 70°C


    Application

    Mobile phones and PDAs/consumer electronics/automotive/telecoms and data transfer/medical instruments/security management/signs and display/point of sale, EPOS/energy controls/amusement and gambling machines/white goods

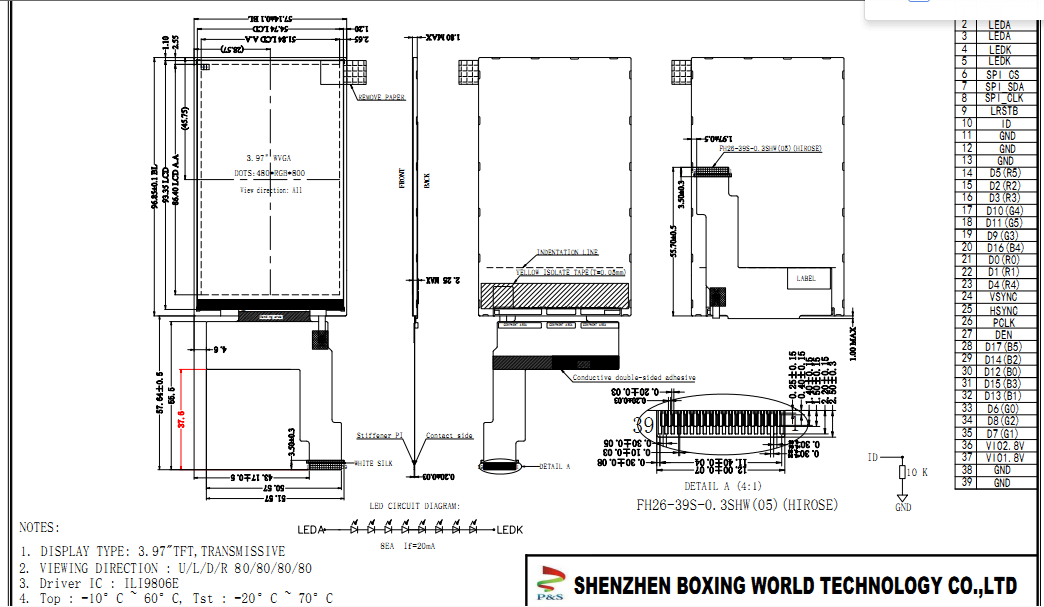

    Drawing
