  • 产品信息:
    描述:320 x 480 resolution 3.5'' TFT LCD display with MIPI interface,RTP and 280 cd/m2 brightness
    模型:PS035SHI06P-2
    显示尺寸(英寸) :3.5
    解析度 :320(RGB)*480
    有效面积(mm) :48.96*73.44
    外形尺寸(mm) :54.48*84.71*3.55
    亮度(cd / m2) :280
    对比度 :500
    接口 :MIPI
    备注:With RTP

    产品详情

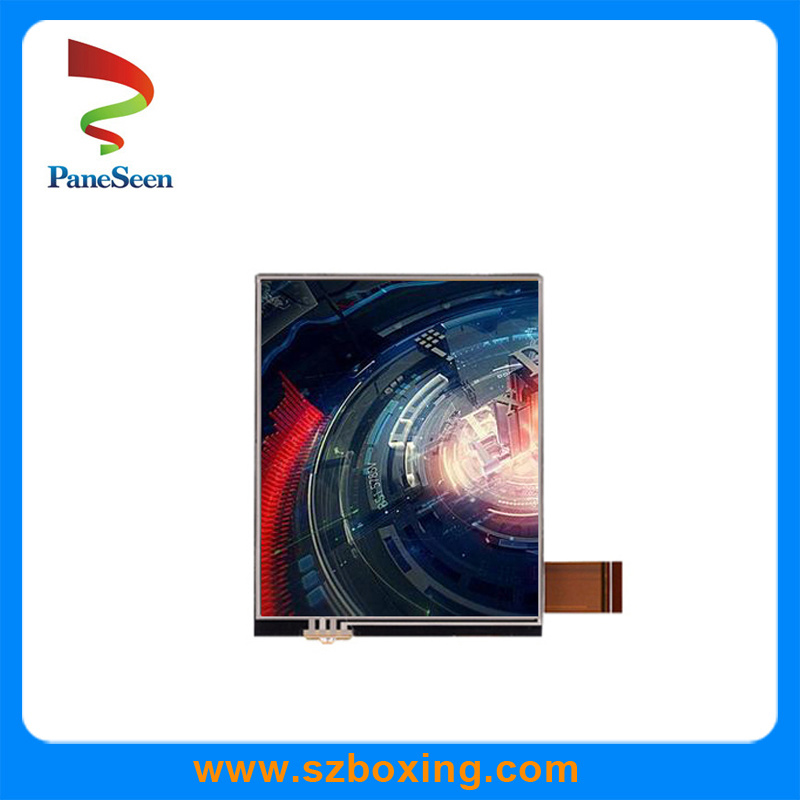

    320 x 480 resolution 3.5'' TFT LCD display with MIPI interface,RTP and 280 cd/m2 brightness
    1.General Specification

    1.1

    PS035SHI06P is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, TP, a back light unit. The 3.5 inch display area contains 320 x 480pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.

    1.2

    Item

    Specifications

    Unit

    LCD Type

    TFT

    Display color

    262K

    Viewing Direction

    6

    O'clock

    Operating temperature

    -20~+70

    ºC

    Storage temperature

    -30~+80

    ºC

    Module size

    Refer to outline drawing

    mm

    Active Area(W×H)

    48.96X73.44

    mm

    Number of Dots

    320×480

    dots

    Controller

    ILI9488

    -

    Power Supply Voltage

    2.8

    v

    Outline Dimensions

    Refer to outline drawing

    -

    Backlight

    6-LEDs (white)

    PCS

    Weight

    ---

    g

    Interface

    MIPI

    -

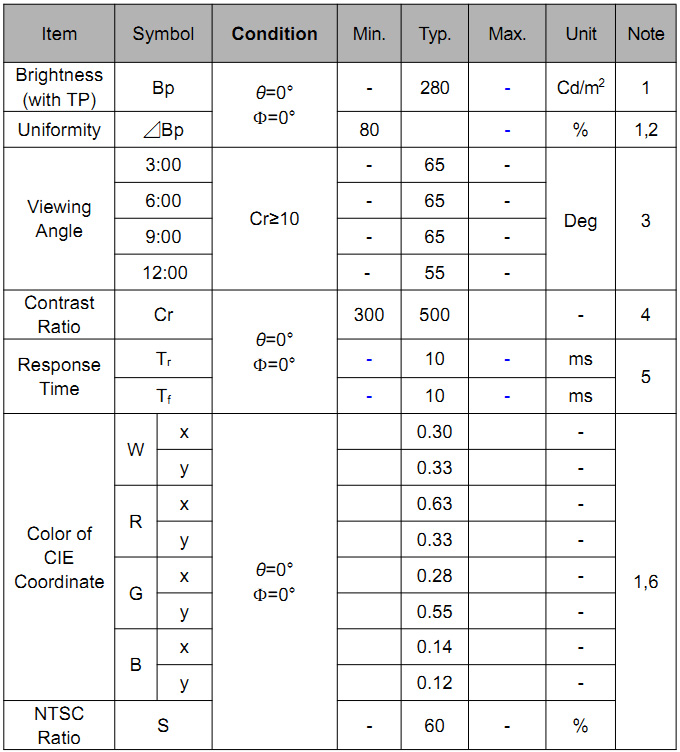

    2.Optical Specifications

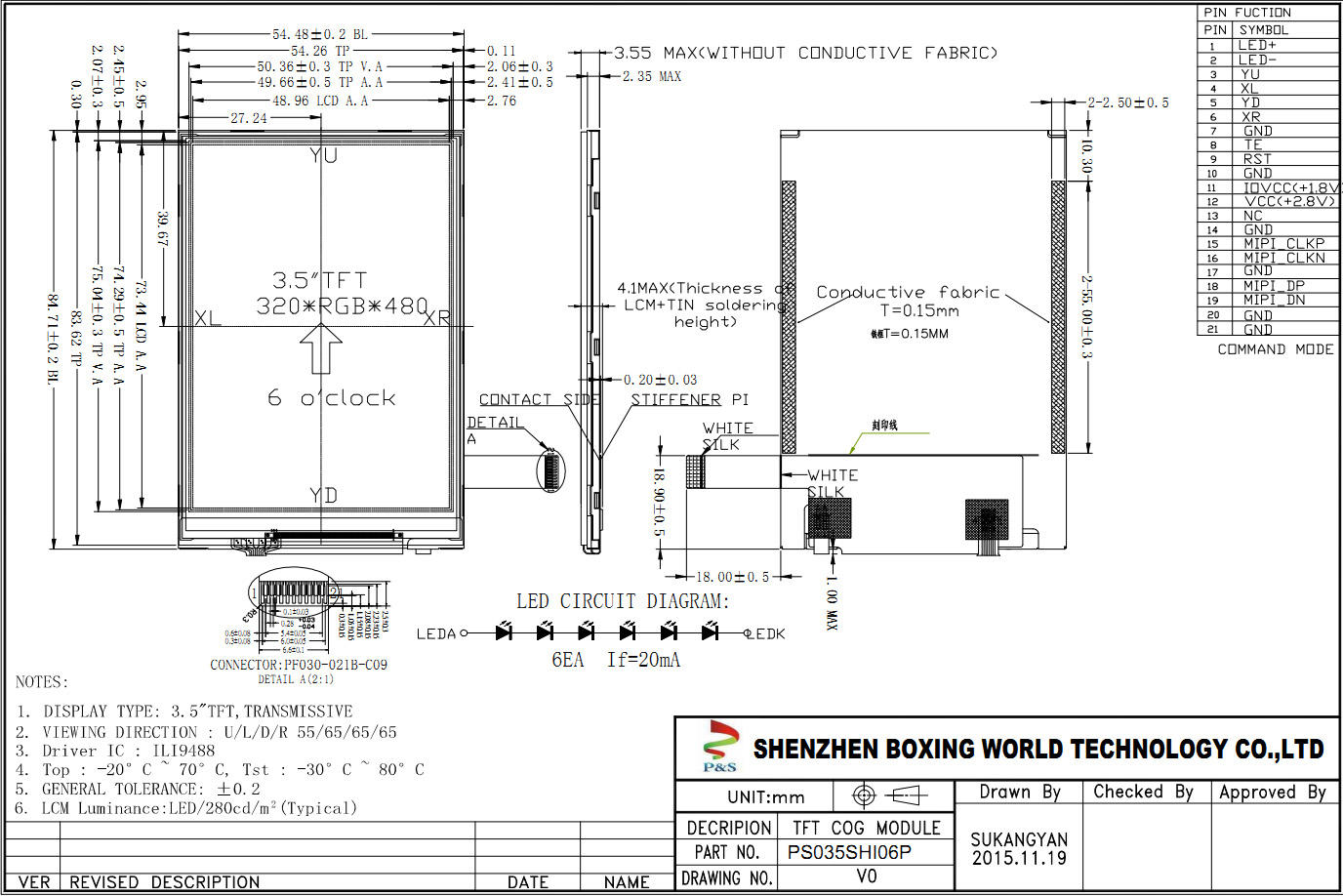

    3.Drawing picture

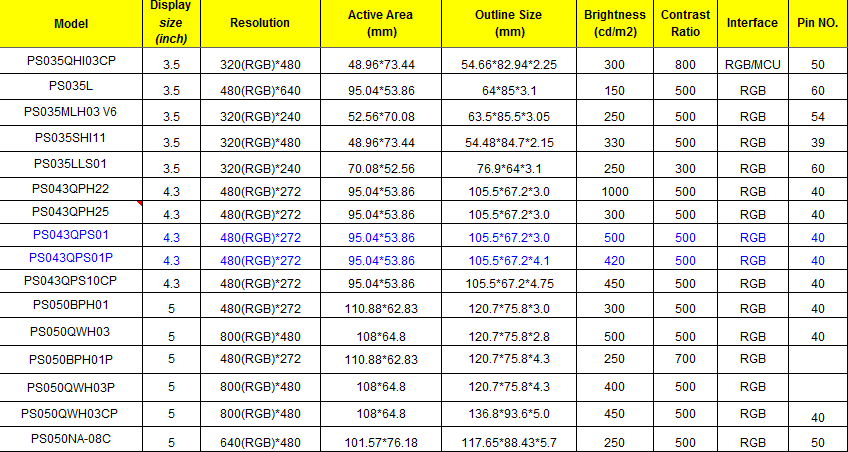

    4.Related products recommendation

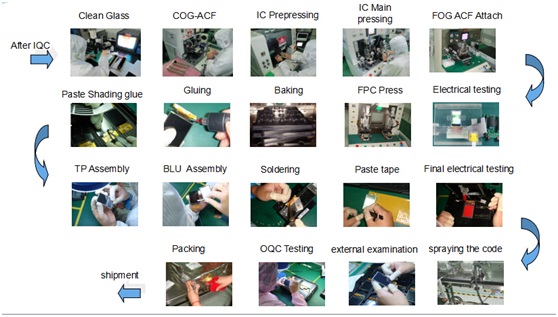

    5.Process:




    6.Quality Control
    Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
    We will test goods strictly according to our standard inspection before shipment.
    If exceed this standard, clients can ask for returning and get new.

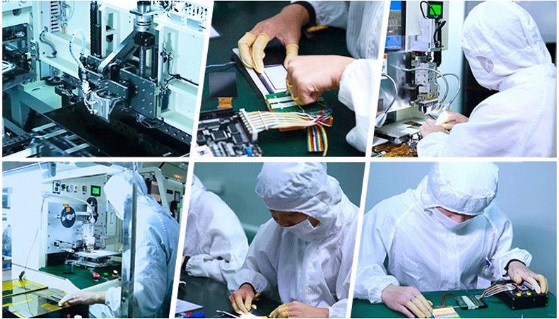

    7.Company Advantages

    8. Packaging and Delivery
    1). Payment Terms: T/T, Paypal
    2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
    3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
    4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
    5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.


    9.Warranty
    The period is within 12 months since the date of shipping out under normal using  and storage conditions.

    10.Reference

    More Products Information also can be learned by entering our company website: http://www.szboxing.com/
