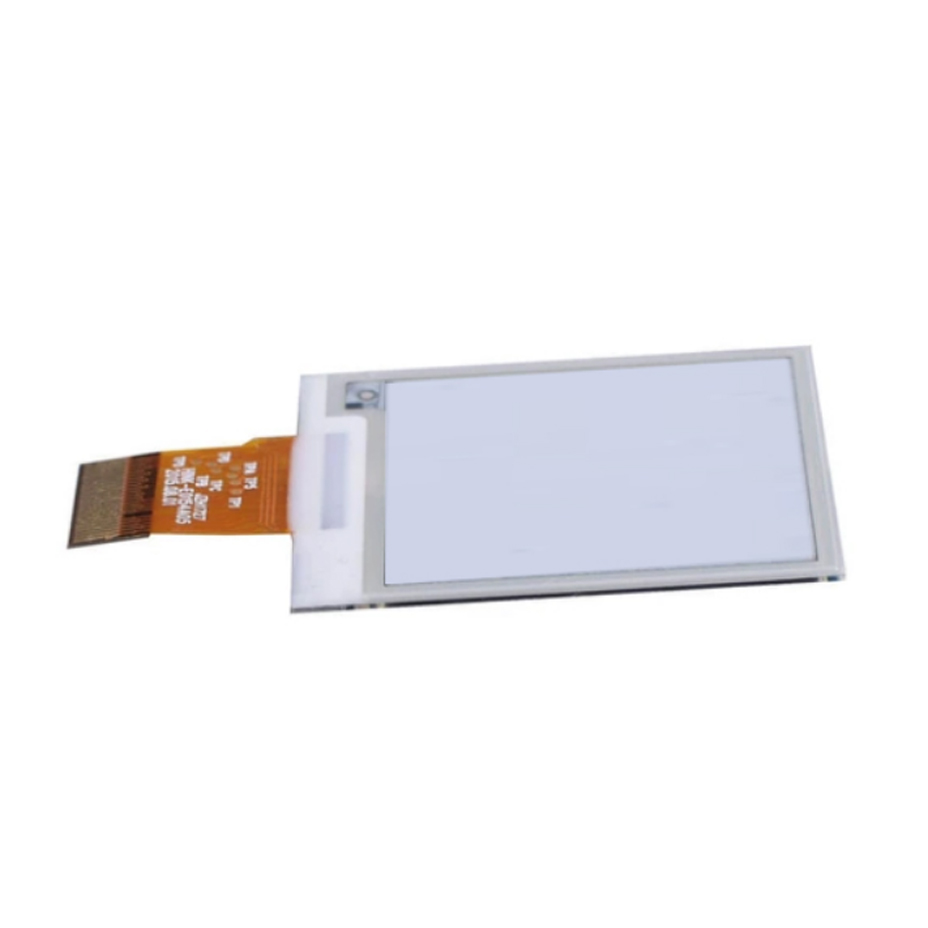

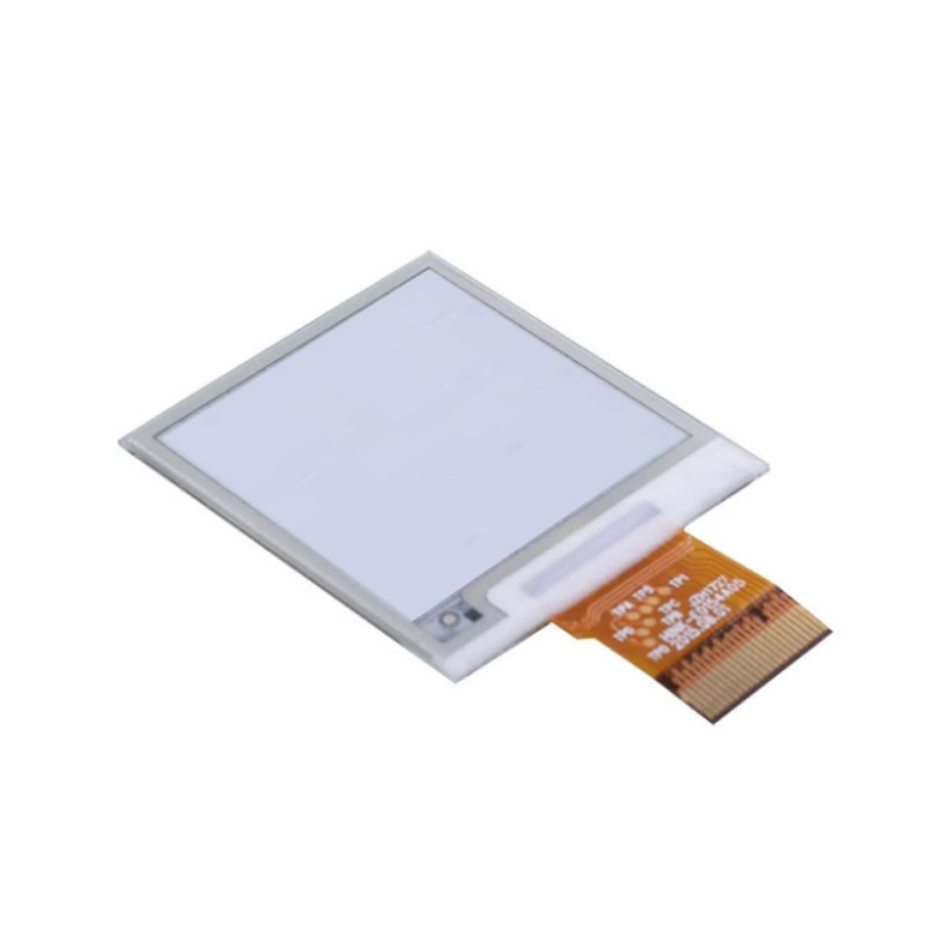

1.54 inch E-paper with Black&White Color use for Electronic Shelf Label
PSE0154A45 is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design. The 1.5" active area contains 200×200 pixels, and has 1-bit B/W full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC. SRAM.LUT, VCOM and border are supplied with each panel.
· Product Features
- 200×200 pixels display
- High contrast
- High reflectance
- Ultra wide viewing angle
- Ultra low power consumption
- Pure reflective mode
- Bi-stable display
- Commercial temperature range
- Landscape, portrait modes
- Hard-coat antiglare display surface
- Ultra Low current deep sleep mode
- On chip display RAM
- Low voltage detect for supply voltage
- High voltage ready detect for driving voltage
- Internal temperature sensor
- 10-byte OTP space for module identification
- Waveform stored in On-chip OTP
- Serial peripheral interface available
- On-chip oscillator
- On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
- I2C signal master interface to read external temperature sensor/built-in temperature sensor
· General Specifications
· E-ink & Outline Dimension
· Packing Drawing：
1) Payment Terms: T/T, Paypal
2) Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3) Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.
4) Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.
5) Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6) Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
^ The period is within 12 months since the date of shipping out under normal using and storage conditions.
· Company Advantage:
* Prompt reply within 12 hours
* Customer customization accepted
* Competitive prices and short lead-time
* Small minimum order quantity accepted
* TFT LCD module, touch panel, PCB with SMT/COB solutions
* More than 10 years experience in specializing in LCD industry
* ISO 9001 and RoHS Directive-compliant certified factory supplied
· Quality Control:
- Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
- We will test goods strictly according to our standard inspection before shipment.If exceed this standard, clients can ask for returning and get new.
