  • 产品信息:
    描述:15 inch 1600*1200 tft lcd touch screen module with industrial panel capacitive ,LVDS interface,1000nits Brightness
    模型:PS150XDHG01-1
    显示尺寸(英寸) :15
    解析度 :1600(RGB)*1200
    有效面积(mm) :304.8*228.6
    外形尺寸(mm) :318.7*242.65*6.5
    亮度(cd / m2) :1000
    对比度 :1000
    接口 :LVDS
    备注:30pins

    产品详情

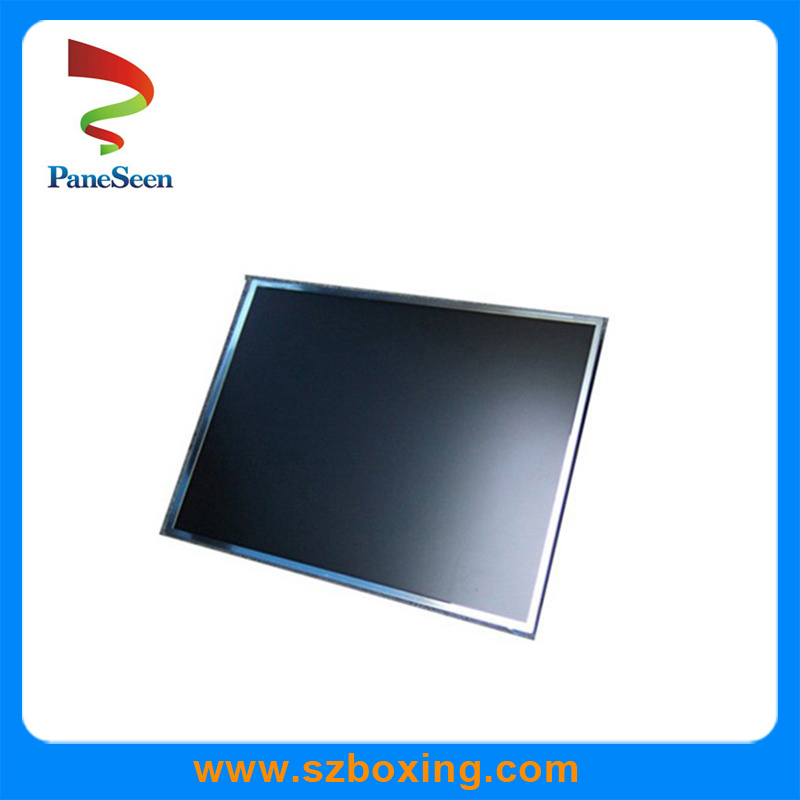

    15 inch 1600*1200 tft lcd touch screen module,1000nits Brightness


    PS150XDHG01 is 15" color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel,driver ICs,control circuit and backlight.By applying 8 bit digital data(6Bit+HFRC),1600*RGB*3*1200,16.7M-color images are displayed on the 15" diagonal screen.


    Advantages:

    1.High Resolution: 1600*1200

    2.High Brightness: 1000nits

    3.High Contrast ratio: 1000:1

    4.Wide View Angle:80/80/80/80


    Application:

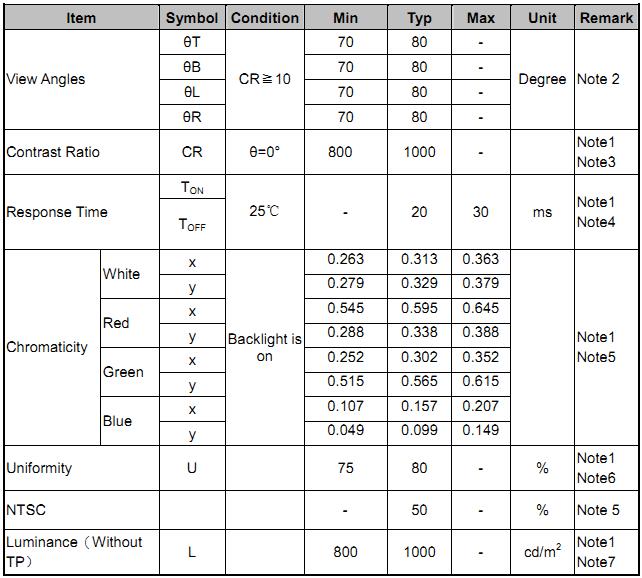

    General specifications are summarized in the following table:



    ITEM SPECIFICATION
    Display Area(mm) 304.8(H)*228.6(V) (15-inch diagonal)
    Number of Pixels 1600(H)*1200(V)
    Pixel Pitch(mm) 0.297(H)*0.297(V)
    Color Pixel Arrangement RGB vertical strip
    Display Mode Normally white,TN
    Number of Colors 16.7M(6bits+Hi-FRC)
    Brightness(cd/m^2) 1000(Typ.)
    Viewing Angle(H/V) 80/80/80/80(Typ.)
    Surface Treatment Anti-Glare,3H
    Optimum Viewing Direction 6 O'clock(Max.contrast ratio,Gray level inversion)
    Power consumption(W) TFT LCD cell= 1.4W Backlight=12W(Typ.)
    Interface Connection LVDS 2ch

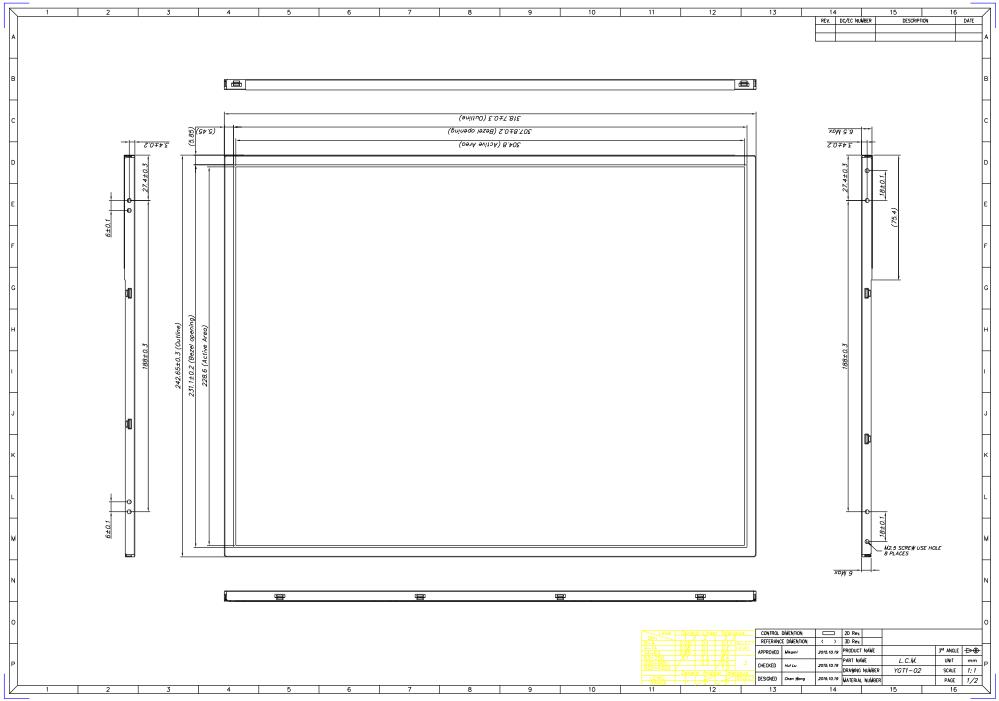

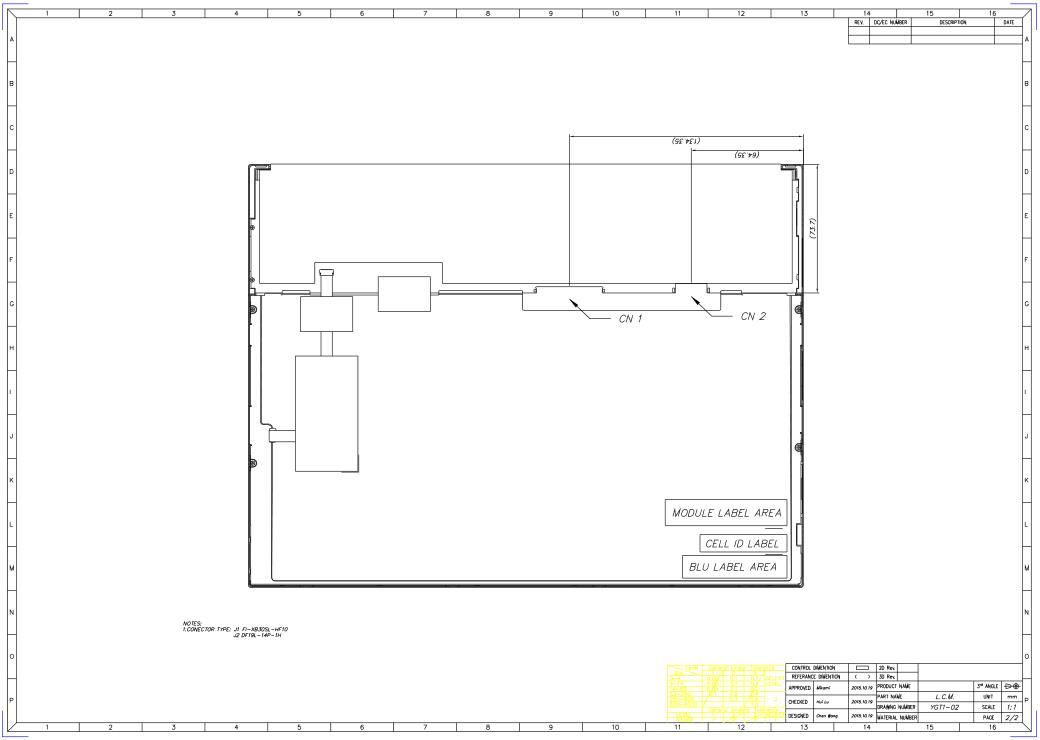

    Module Size(mm) 318.7*242.65*6.5(Typ)(W/PWB)
    Module Weight(g) 870g(typ.)
    Backlight Unit LED:(white-LED)


        The LCD Products listed on this document are not suitable for use of aerospace equipment,submarine cable,and nuclear reactor control system and life support systems.If customers intend to use these LCD products for applications listed above or those not included in the "standard" list as follows,please contact our sales in advance.



    Standard: Computer,office equipment,communication equipment,test and Measurement equipment,machine tool,industrial robot,audio and visual equipment,other consumer products.
