  • 产品信息:
    描述:10.1 inch Capacitive Touch Screen Panel, with 5/6 Pins G+G (CTP)/ USB,IIC interface/ILI2301S+M2V Driver IC
    模型:PSC1014630
    显示尺寸(英寸) :10.1
    外形尺寸(mm) :257.72*160.28*1.73
    有效面积(mm) :222.72*125.28
    Pin NO. :5 or 6
    备注:ILI2301S+M2V/USB/IIC interface

    产品详情

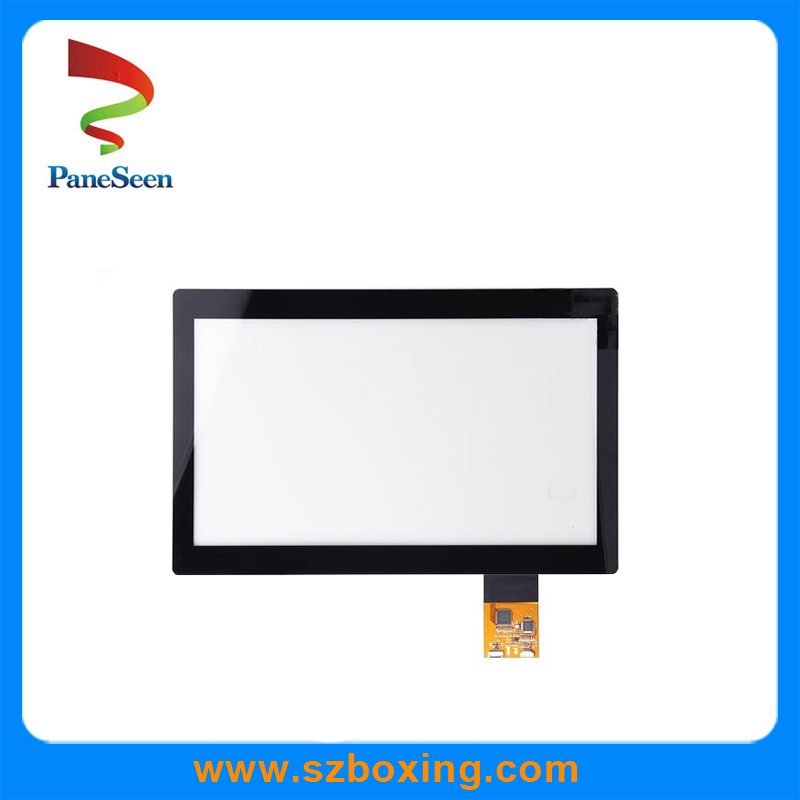

    10.1inch Industrial medical grade multi touch panel/ USB + IIC capacitive touchscreen


    The product is touch panels used as the input devices for general electronic appliances and POS equipment.


    General Specification

    Item

    Contents

    PN

    PSC1014630

    Size

    10.1 inch

    Construction

    G+G

    Outline Size

    257.72*160.28*1.73 mm

    View area

    222.72*125.28 mm

    Interface

    USB/IIC

    Driver IC

    ILI2301S+M2V

    Surface hardness

    >=6H

    Transparency

    >87%

    Multi Touch

    10 points

    Operation temperature

    -20 to 70°C

    Storage temperature

    -30 to 80°C


    Application

    • POS terminals
    • Smart home, IoT
    • Financial-ATM and bill pay kiosks
    • Medical device

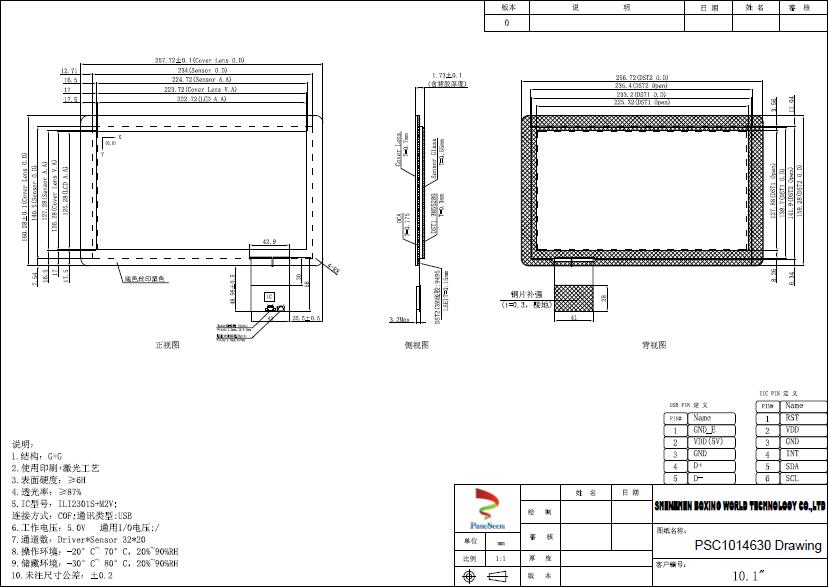

    Drawing
