  • 产品信息:
    描述:10.1'' high resolution Touchscreen LCD display with 40 pins LVDS interface for home appliances
    模型:PS101IWCN1D36CP-2
    显示尺寸(英寸) :10.1
    解析度 :1280(RGB)*800
    有效面积(mm) :216.96*135.6
    外形尺寸(mm) :261.95*180.59*4.5
    亮度(cd / m2) :300
    对比度 :800
    接口 :LVDS
    备注:WIth CTP

    产品详情


    10.1'' high resolution Touchscreen LCD display with 40 pins LVDS interface for home appliances

    -General Specification

    ITEM

    SPECIFICATION

    Size

    10.1 inch

    Resol ution

    1280(RGB)*800

    Active Area

     216.96*135.6

    Outline Size

    261.95*180.59*4.5

    Brightness

     300

    Contrast Ratio

    800

    Interface

    LVDS

    Pin NO

     40

    Viewing Angle

    85/85/85/85

    Operation Temperature

    050

    Storage Temperature

    -2060

    Touch Panel

    Capacitive

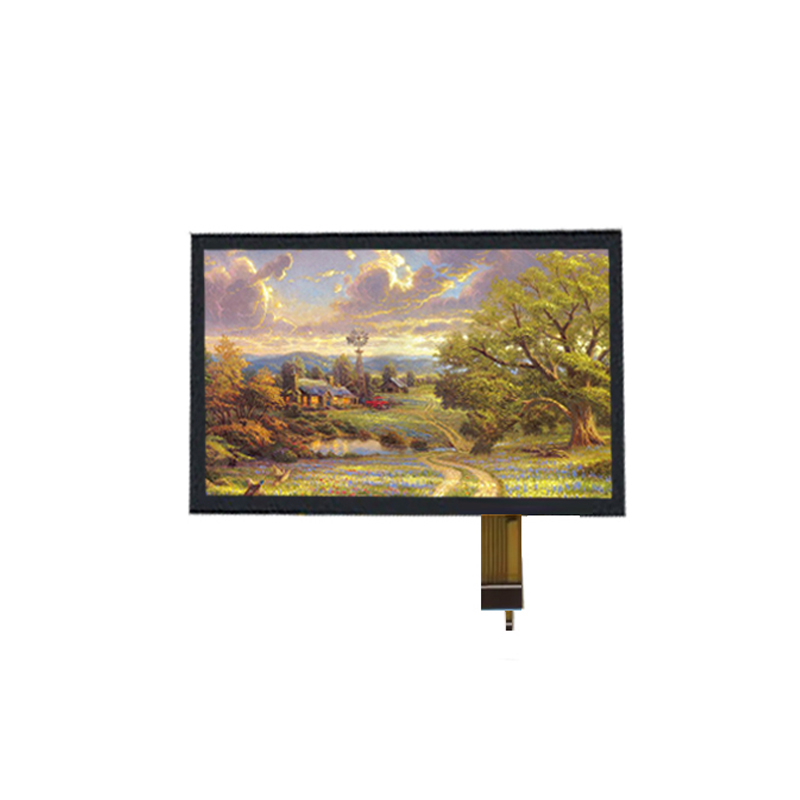

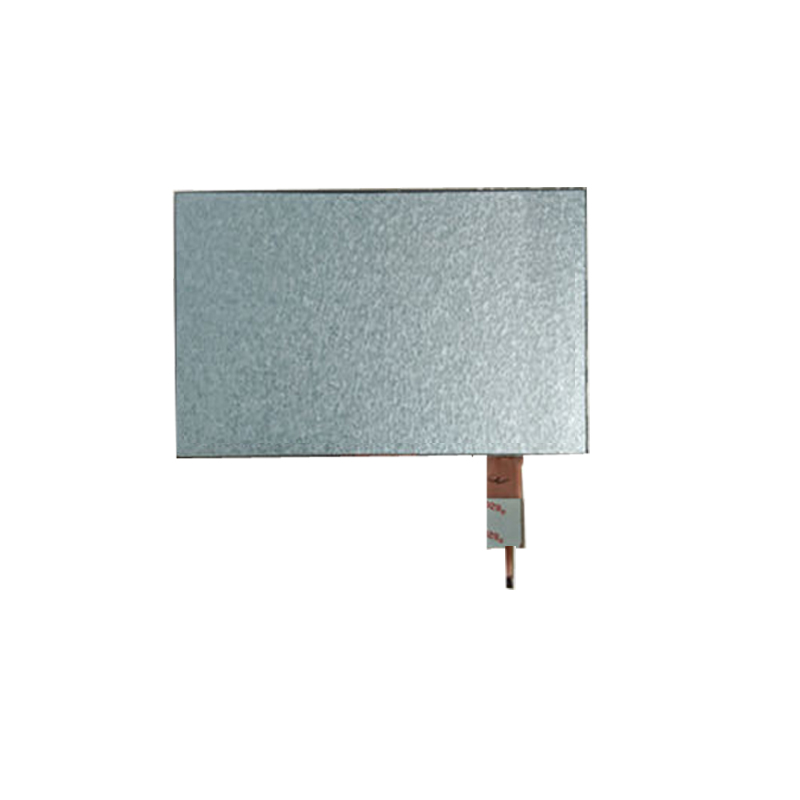

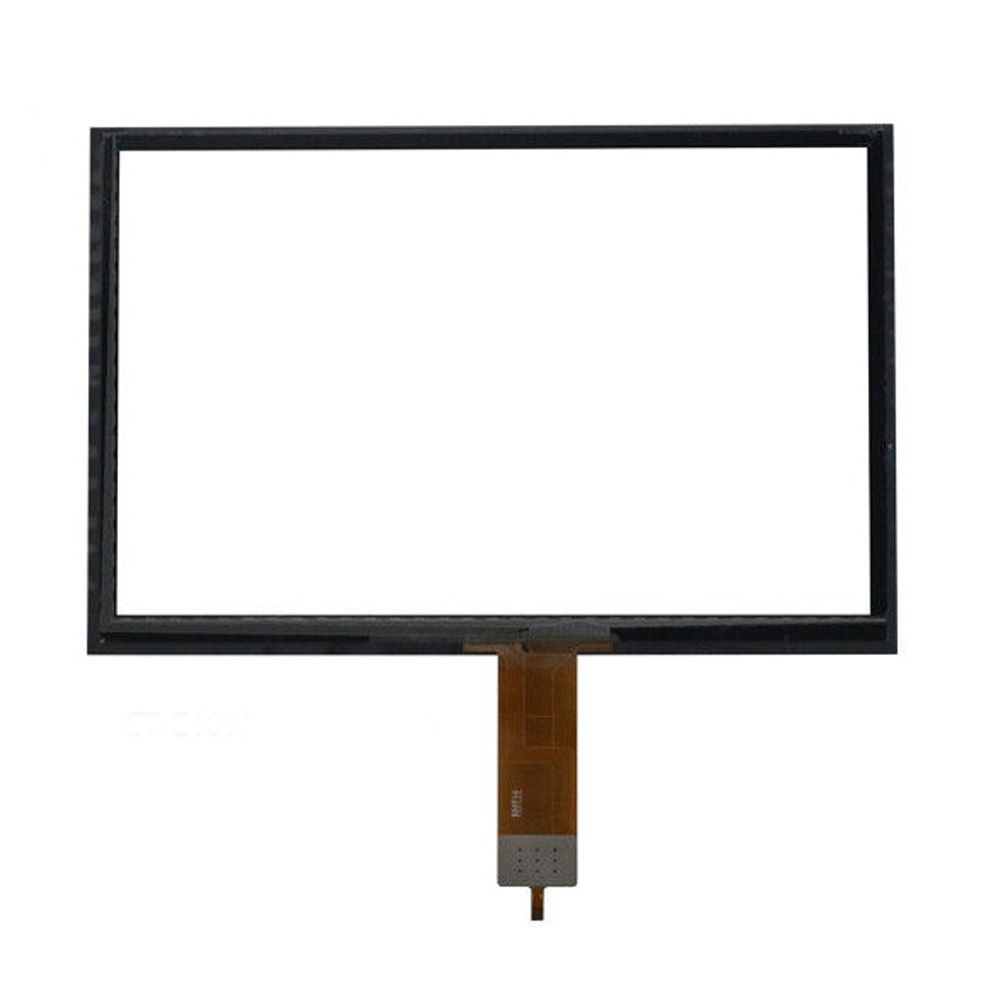

    -Product picture

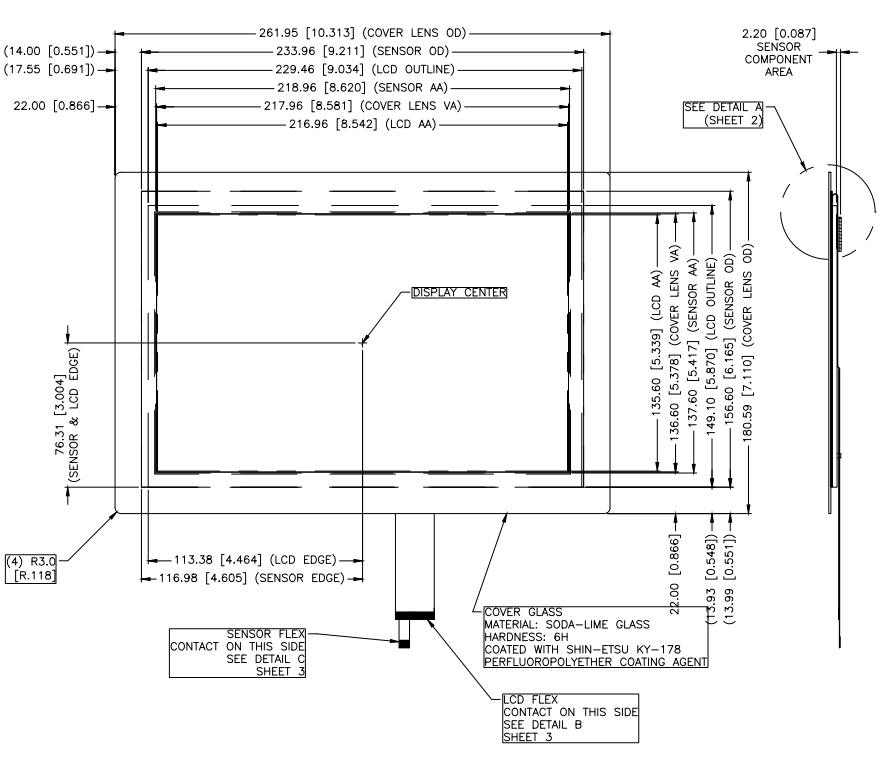

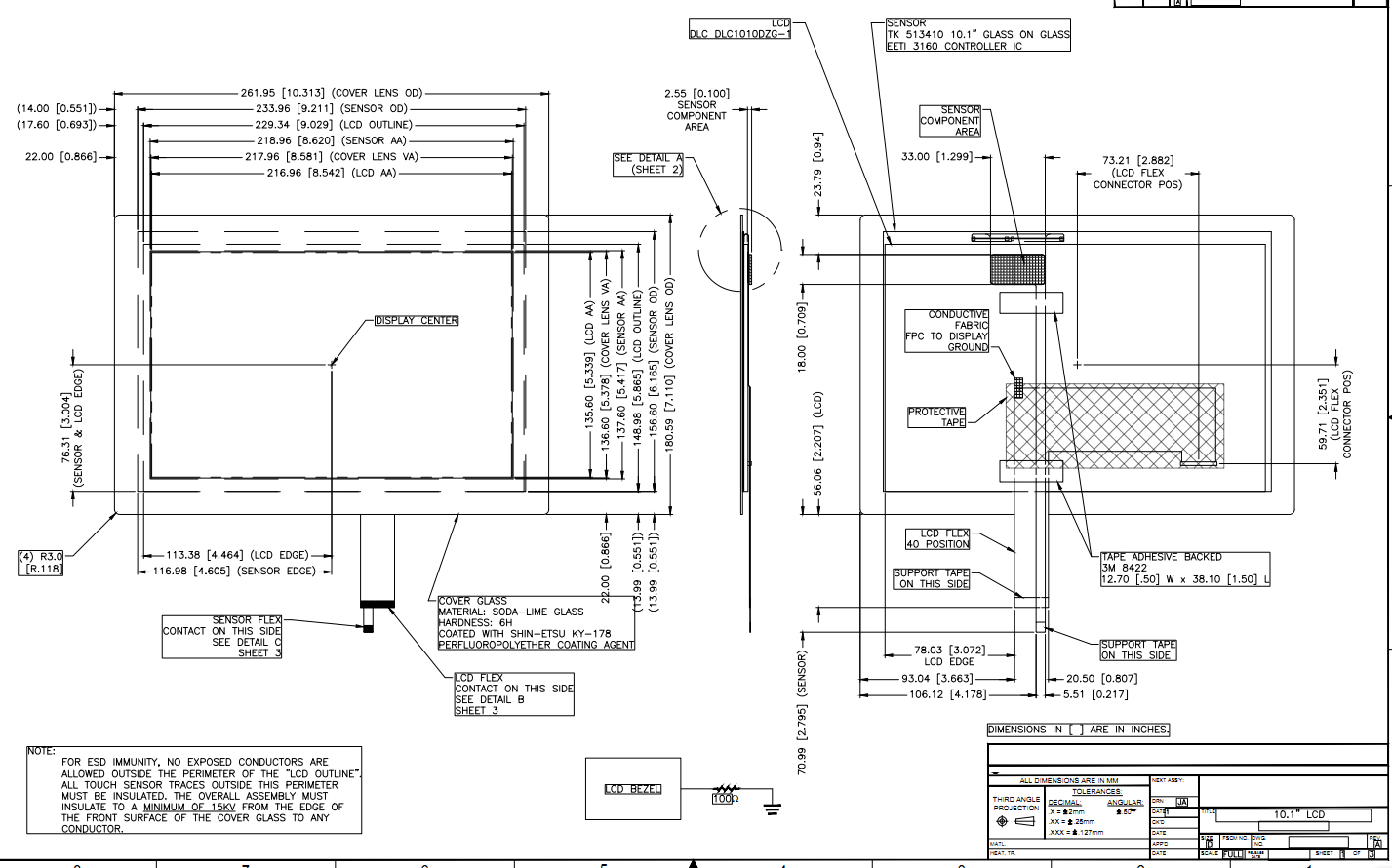

    -Drawing picture

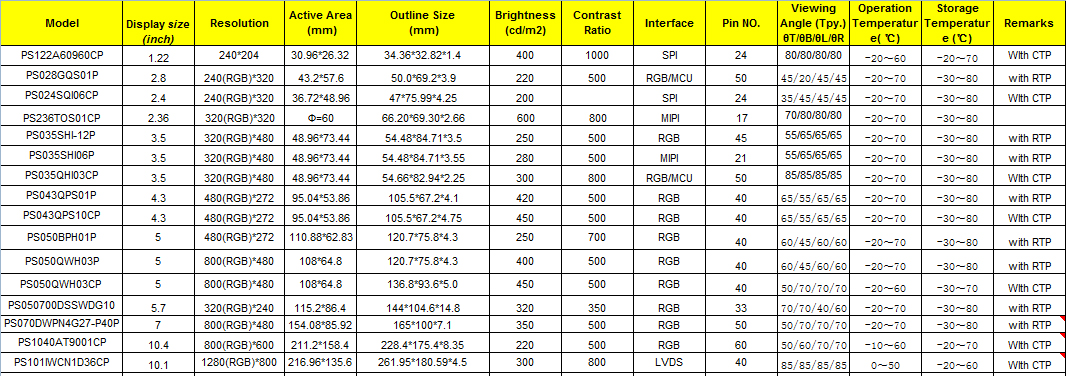

    -Related products recommendation

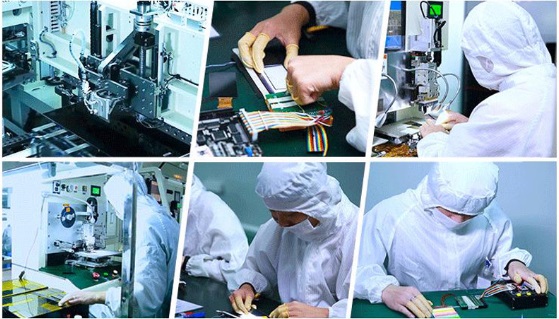

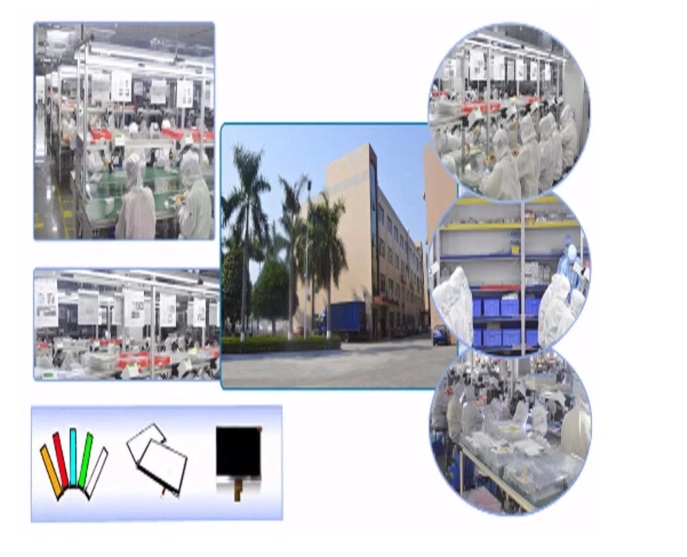

    -Our Factory

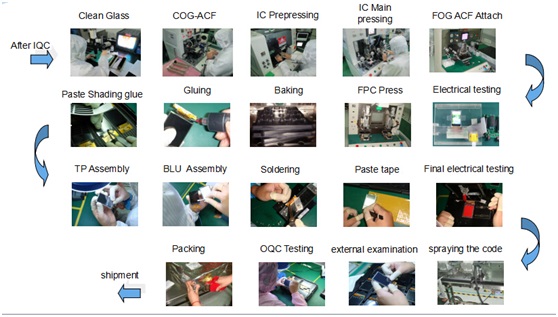

    -Technological Process




    -Company Advantages




    -Quality Control
    Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
    We will test goods strictly according to our standard inspection before shipment.
    If exceed this standard, clients can ask for returning and get new.





    -Packaging and Delivery
    1). Payment Terms: T/T, Paypal
    2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
    3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
    4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
    5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.


    -Samples:
    Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

    -Warranty
    The period is within 12 months since the date of shipping out under normal using  and storage conditions.

    -Reference
     More Products Information also can be learned by entering our company website: http://www.szboxing.com/
